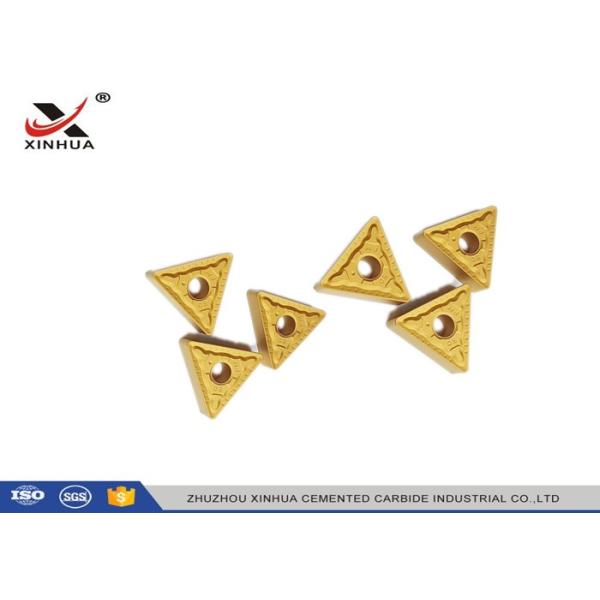

YBC251 Triangle Carbide Insert TNMG160408-PM TNMG432 Indexable Insert for Steel Semi-finishing
Description:
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on 45steel, cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product features - Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
- Multi Layer coating TiC/Al2O3/TiN
- Good toughness, high strength in use and versatility for roughing, medium roughing of steel, alloy steel and cast-iron, especially for high speed and quick cutting
- Use for slotting and slab or straddle milling
|
Application:
.
About Triangle (T) Turning Inserts
Inserts with a triangle shape have a 60° point angle. They are recommended for light roughing, semi-finishing, finishing applications, and for applications with limited machine power.
Insert shapes are available with a range of point angles. In general, inserts with a large point angle have a stronger cutting edge but produce more vibration and require more machine power than inserts with a small point angle. Inserts with a small point angle are more versatile, provide better accessibility for detailed cutting, produce less vibration, and require less machine power than inserts with a large point angle, but they have a weaker cutting edge and may be more prone to heat damage.
Inserts are available with a negative or positive basic shape. Negative inserts have a 0° clearance angle. They provide good edge strength and are recommended for external turning and heavy cutting applications. Double-sided negative inserts offer twice as many cutting edges as positive inserts, but single-sided negative inserts provide the best stability in heavy roughing applications. Positive inserts have a clearance angle that is greater than 0° and are a good choice for internal turning applications and external turning applications on slender workpieces. Positive inserts are single sided and produce lower cutting forces than negative inserts.
Specification:
| item name | TNMG160408-PM |
| Place of Origin | Zhuzhou |
| Model Number | various |
| Workpiece | Steel |
| Application | Turning |
| Color | Gold |
| Hardness | various |
| Coating | CVD Coated |
| Material | Tungsten Carbide
|
